The Impact of PET Label Thickness on Performance: Detailed Insights
In the field of modern packaging and labeling, PET labels are widely used for their excellent performance. However, the thickness of PET labels has a significant impact on their performance, which determines their applicability in different scenarios. This article will delve into how the thickness of PET labels affects their performance, helping you to better select the right label material.

I. Common Thickness Range of PET Labels

The thickness of PET labels commonly available in the market typically ranges from 25μm (0.025mm) to 150μm (0.15mm). The most commonly used specifications include:
•  25μm / 36μm: Ultra-thin, suitable for lightweight, disposable, or temporary identification.
•  50μm / 75μm: Standard, balancing flexibility and strength, widely used in electronics, cosmetics, etc.
•  100μm / 125μm / 150μm: Thick, suitable for high wear resistance, outdoor, or industrial environments.

II. How Does Thickness Affect Label Performance?

1. Mechanical Strength and Durability
•  The thicker, the stronger: Thicker PET labels have higher resistance to tearing, puncturing, and bending, making them less likely to be damaged during transportation, handling, or long-term use. For example, thin PET labels (60-120 gsm) are suitable for food and beverage labels where the strength requirement is low but good print quality is still needed. However, thicker PET labels (180-300 gsm) are more appropriate for high-end products or scenarios requiring particularly durable labels, such as luxury goods and electronics, as they can effectively resist scratches, stains, and environmental impacts, providing a longer lifespan.
•  Application scenario differences: For example, labels used on automotive parts or industrial equipment often need to withstand high temperatures, oil contamination, or friction. In such cases, choosing PET labels thicker than 100μm is more reliable. In contrast, information labels on ordinary products like beverage bottles can use thin PET labels around 50μm to save costs.
2. Print Compatibility and Clarity
•  Different requirements for thermal transfer and laser printing: Too thin PET (e.g., 25μm) is prone to wrinkling or shifting due to uneven tension during high-speed thermal transfer printing, affecting print accuracy. On the other hand, too thick labels (e.g., 150μm) may exceed the paper feeding capacity of some printers, causing paper jams.
•  Device matching recommendations: General office or commercial barcode printers are recommended to use PET labels with a thickness of 50–75μm, which can ensure print quality while maintaining good paper feeding stability.
3. Adhesion and Curved Surface Compatibility

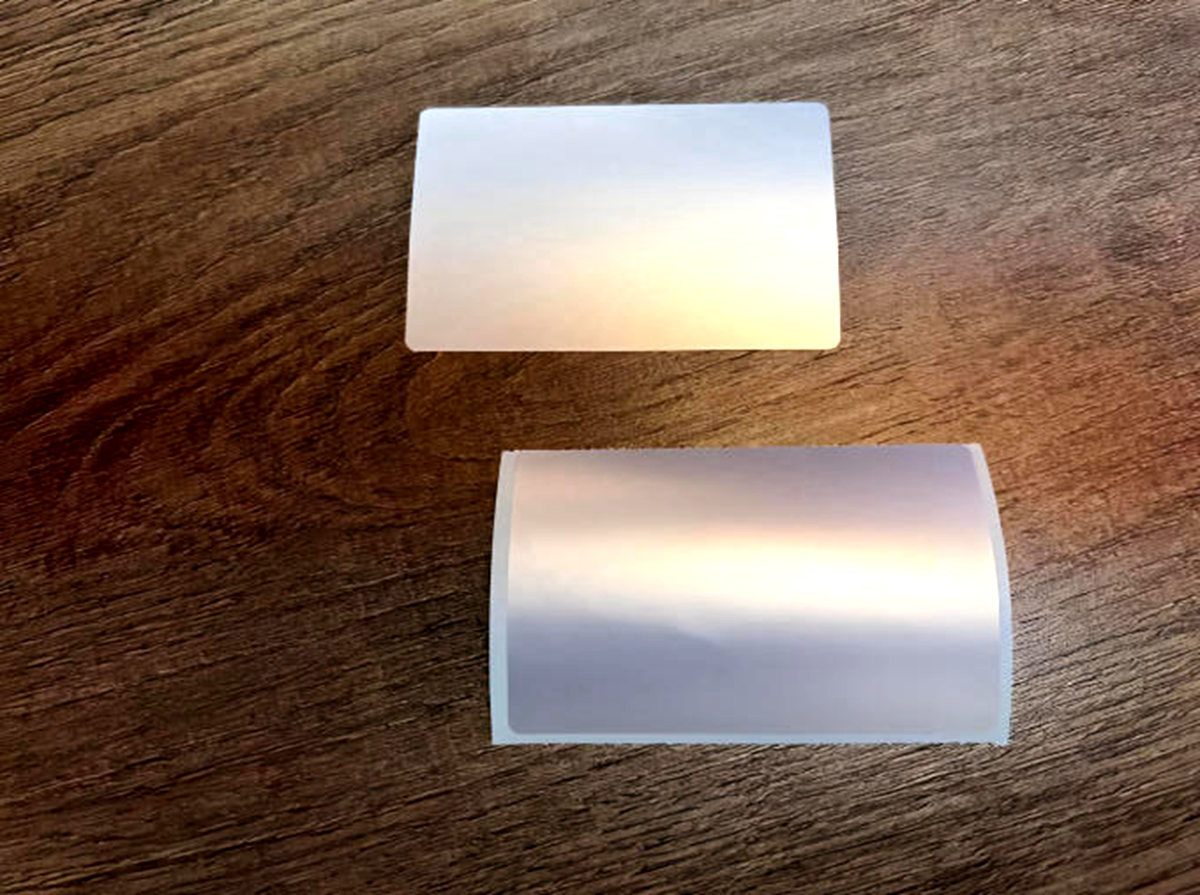

•  Thin labels are more suitable for curved surfaces: For cylindrical bottles, small-diameter pipes, and other curved substrates, thinner PET labels (e.g., 36–50μm) have better flexibility and can adhere closely, reducing bubbles or lifting edges.
•  Thick labels are suitable for flat applications: On flat surfaces (such as circuit boards, metal panels), thick PET labels not only look more upscale but also provide better coverage and structural support.
4. Weather Resistance and Environmental Adaptability
•  Increased thickness usually means better barrier performance: Thicker PET labels generally have stronger resistance to water vapor, chemicals, and ultraviolet light. For example, outdoor asset labels made of PET thicker than 100μm can significantly extend their service life.
•  However, it should be noted that weather resistance depends more on the additives in PET (such as UV stabilizers) rather than solely on thickness.
5. Cost and Environmental Considerations
•  Material cost increases linearly with thickness: The raw material usage of a 150μm label is about three times that of a 50μm label, directly affecting the purchase cost. Generally speaking, thinner PET labels are cheaper and suitable for mass production of fast-moving consumer goods. In contrast, thicker PET labels, although better in performance, are relatively more expensive and are suitable for high-end products with higher requirements for durability and appearance.
•  Environmental trends promote lightweighting: More and more companies are inclined to use thinner PET labels to reduce plastic usage while meeting functional requirements, in line with the concept of sustainable development.

Conclusion

The thickness of PET labels has a multifaceted impact on their performance, including durability, print quality, packaging appearance, die-cutting precision, adhesion, and environmental adaptability. When selecting PET labels, it is essential to consider these factors comprehensively based on specific application scenarios and requirements to ensure that the labels meet the product's usage demands and enhance the overall value of the product. It is hoped that this article's introduction will help you better understand and choose the appropriate PET label thickness.
