Why is the readability of barcodes printed horizontally different from those printed vertically on a barcode printer?
It has been observed that the readability and clarity of barcodes printed horizontally and vertically on a barcode printer are different. Barcodes printed horizontally generally have much better image quality than those printed vertically. This phenomenon is consistent across different brands of barcode printers. However, in daily use, it has been found that Zebra series printers tend to perform better when printing vertical barcodes compared to other brands. Therefore, when using a barcode printer, it is advisable to print barcodes horizontally if possible. If vertical printing is necessary, it is important to carefully control the barcode density, avoiding overly dense patterns, and to reduce the print concentration. These measures can help improve the readability of the barcodes.

Below is a detailed analysis of why barcode printers tend to produce better results and higher readability when printing barcodes horizontally compared to vertically:

1.  First, it is necessary to explain the control principle of the thermal print head of the barcode printer. The computer decomposes an image into linear image data for output, which is then sent to the print head. For each point in the linear image, the print head allocates a heating element. Although the print head can only print dots, to print complex barcodes, the computer software or printer must decompose them into linear rows.

•  Note: The lines must be very thin, so that the content within the lines becomes individual dots. Simply put, you can imagine the heating elements as “square” dots, with the smallest width being the same as the spacing between the heating elements. From the control of the thermal print head, it is clear that there are differences between horizontal and vertical barcode printing:

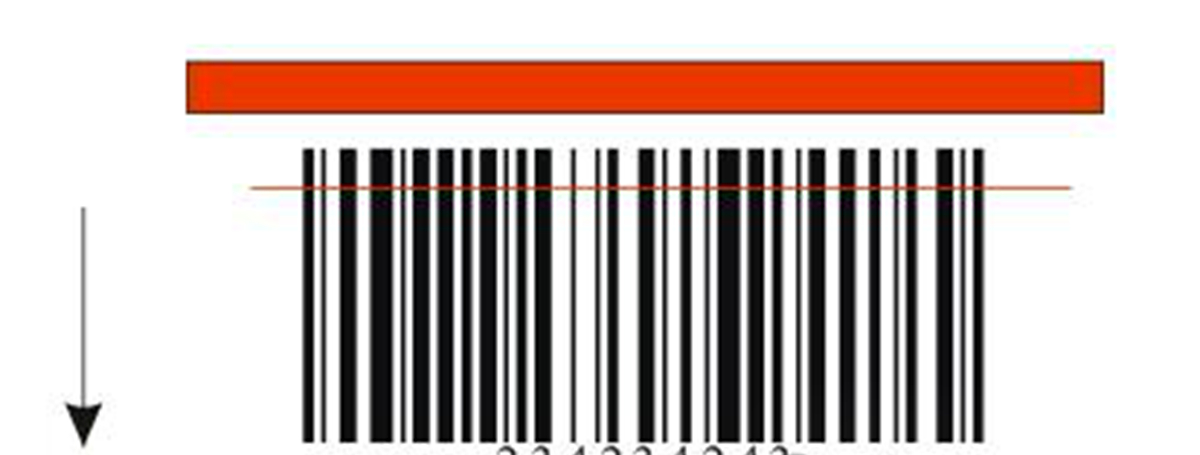

•  (1)Horizontal Barcode Printing

The red line intersects the barcode at the points where the print head applies heat.

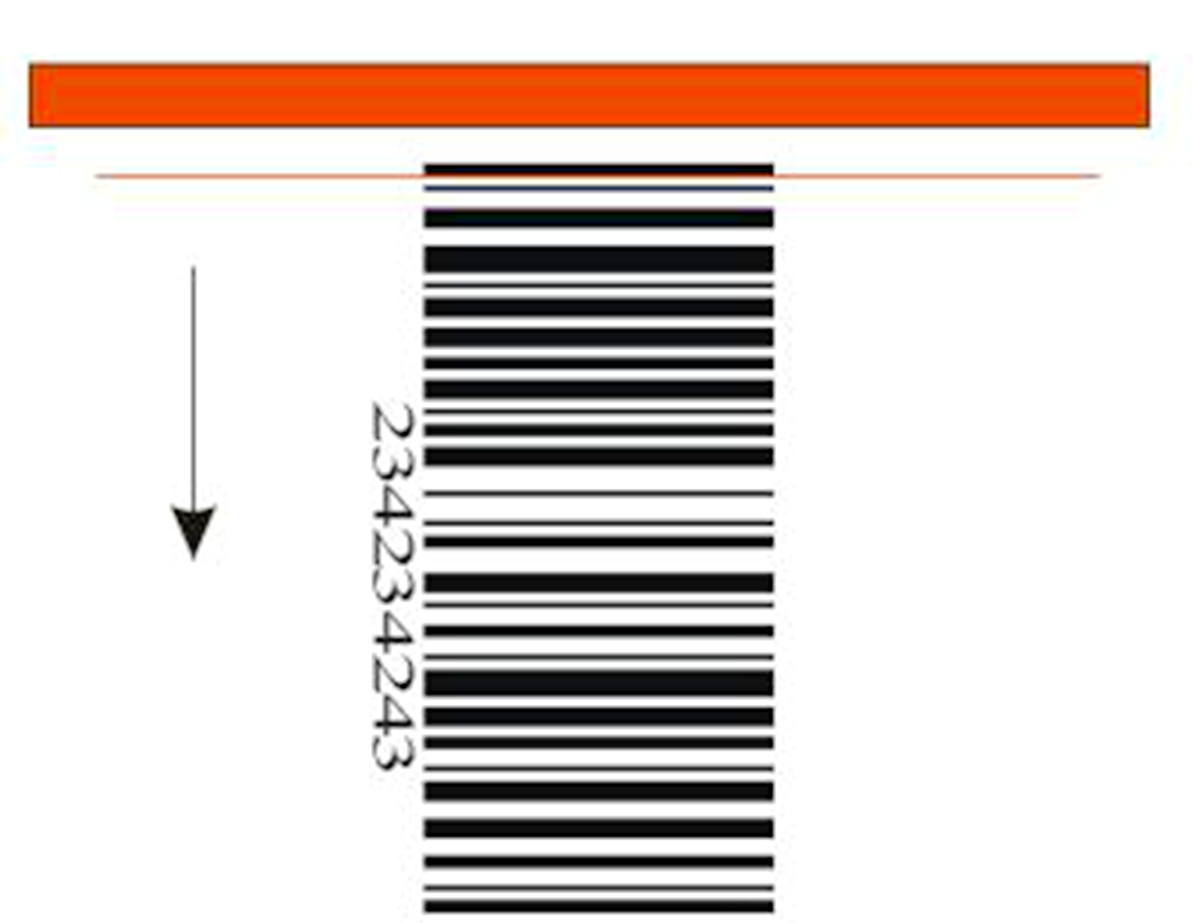

• (2) Vertical Barcode Printing

The red line intersects the barcode at the points where the print head applies heat.
•  From the above figures (1) and (2), it is clear that the spaces (white bars) between the barcode lines are created differently. In horizontal printing, the spaces are created by controlling the distance between the heating elements of the print head. In vertical printing, the spaces are created by the coordination between the printer speed and the heating process. Since barcodes are recognized based on the ratio between the bars and spaces, maintaining a stable bar-to-space ratio is crucial for readability. However, in vertical printing, the bar-to-space ratio is affected by the mechanical speed of the printer, which makes it difficult to strictly maintain this ratio. This results in lower readability for vertically printed barcodes.

2.  During printing, the melting of the ribbon causes different heating areas for horizontal and vertical printing (horizontal printing involves localized, dispersed heating, while vertical printing involves overall, concentrated heating). In vertical printing, the ribbon continuously melts at the same position on the print surface, leading to deformation of the lines and increased fringing, which degrades the print quality and, consequently, the readability. This decline in print quality can be somewhat mitigated by reducing the print concentration.
